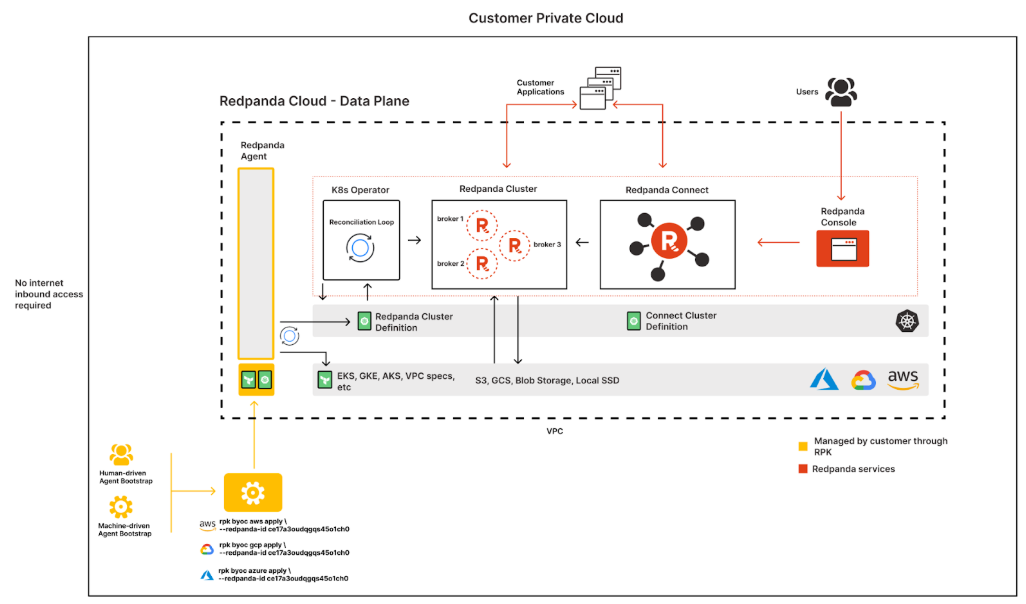

Docs Cloud Networking Network Design and Ports Network Design and Ports Redpanda Cloud deploys different types of networks for public Redpanda clusters and for private Redpanda clusters. By default, networks are always laid out across multiple availability zones (AZs) to enable the creation of one or many single and multi-AZ Redpanda clusters within them. Public vs private network designs The following table compares public and private Redpanda clusters: Feature Public clusters Private clusters Access Internet-accessible endpoints Access only through VPC peering or private service connectivity (AWS PrivateLink, Azure Private Link, or GCP Private Service Connect) Security SASL/SCRAM authentication + TLS encryption SASL/SCRAM authentication + TLS encryption + network isolation Use case Development, testing, or scenarios where public access is needed Production environments requiring heightened security The Redpanda Cloud agent (sometimes called the data plane agent) provisions, configures, and maintains cluster resources, including the network. Each agent has a dedicated operations queue in the control plane through which it pulls and materializes cluster definition documents into cloud infrastructure resources. For BYOC clusters, agents are provisioned by the user with rpk. For more information, see BYOC Architecture. Public Redpanda clusters Public Redpanda clusters deploy networks segmented by workload type. Public clusters deploy brokers in public subnets. Redpanda ports are protected by SASL/SCRAM authentication (SCRAM-SHA-256, SCRAM-SHA-512) and encrypted in transit using TLS 1.2. Everything else is deployed on private subnets. Private Redpanda clusters Private Redpanda clusters also deploy networks segmented by workload type. Brokers are placed on private subnets, accessible from within the same VPC or from VPC peerings or private connectivity. The Redpanda Cloud agent and Redpanda Connect nodes are placed in distinct subnets, segmented away from Redpanda services by routing and firewall rules. The following diagram shows the private subnet used by private Redpanda clusters. Network ports This section lists the external ports on which Redpanda Cloud components communicate. Redpanda manages security group and firewall configurations, but if you need to add to your own rule sets, these are the available network ports. The following table provides a quick reference of network ports: Direction Purpose Ports North-south External client access 30092, 9092, 30081, 30082, 443 East-west Internal cluster communication 30092, 9092, 8081, 8082, 33145, 30644, 8083 South-north Outgoing connections 443 Redpanda also uses some ports for internal communication inside the cluster, including ports 80 and 9644. North-south The following table lists the network ports available to external clients within each data plane. For private clusters, access to these ports is only possible through Redpanda Cloud network connections such as VPC peering, transit gateway attachments, or private service connectivity. Service Port Kafka API 30092/tcp Kafka API bootstrap 9092/tcp Schema Registry 30081/tcp Kafka HTTP Proxy and Kafka HTTP Proxy bootstrap 30082/tcp Redpanda Console, Data Plane API, Prometheus metrics 443/tcp East-west The following table lists the network ports available within each data plane for internal communication only. Service Port Kafka API 30092/tcp Kafka API bootstrap 9092/tcp Schema Registry 8081/tcp Kafka HTTP Proxy 8082/tcp Redpanda RPC 33145/tcp Redpanda Admin API 30644/tcp Kafka Connect API 8083/tcp South-north The following network port is used for outgoing network connections outside the VPC. DNS and NTP ports are not included because those network flows do not leave the cloud provider’s network, and they reach the internal cloud provider services within the VPC. Service Port Control plane, breakglass, artifact repository, and telemetry 443/tcp Private service connectivity network ports North-south When private service connectivity is enabled (AWS PrivateLink, Azure Private Link, or GCP Private Service Connect), the following network ports are made available to external clients: Service Port Kafka API 32000-32500/tcp Kafka API bootstrap 30292/tcp Schema Registry 30081/tcp Kafka HTTP Proxy 35000-35500/tcp Kafka HTTP Proxy bootstrap 30282/tcp Redpanda Console, Data Plane API, Prometheus metrics 443/tcp NAT gateways Redpanda Cloud clusters rely on outbound-only internet access to connect to the control plane, perform cluster upgrades, and deliver cluster telemetry to the control plane. For Dedicated and BYOC standard clusters on AWS and GCP, Redpanda provisions one NAT gateway and one internet gateway. For Dedicated and BYOC standard clusters on Azure, Redpanda provisions one NAT gateway and one public IP prefix of 31 bits. For BYOVPC, you decide how to provide access to the internet, because you fully manage the network. Without connectors, NAT-incurred costs should be relatively low. Redpanda Connect and Kafka Connect connectors can egress to the internet and incur high NAT data transfer costs. Use case NAT gateway required? Redpanda streaming traffic No Redpanda Tiered Storage traffic No: VPC gateway endpoint used, no data transfer charges Redpanda provisioning and telemetry Yes: minimal usage for artifact downloads and metrics Internet-facing connectors Yes: incurs NAT data-transfer charges Cloud provider network services Each cloud provider offers specific network services integrated with Redpanda Cloud: AWS Azure GCP Time synchronization Redpanda Cloud uses the Amazon Time Sync Service, a fleet of redundant satellite-connected and atomic reference clocks in AWS regions. Domain name system (DNS) Redpanda Cloud creates a new DNS zone for each cluster in the control plane and delegates its management exclusively to each cluster’s data plane. In turn, the data plane creates a hosted zone in Route 53, managing DNS records for Redpanda services as needed. All interactions with Route 53 are controlled by IAM policies targeted to the specific Route 53 resources managed by each data plane, following the principle of least privilege. The Route 53-hosted DNS zone in the data plane has the following naming convention: BYOC/BYOVPC: [cluster_id].byoc.prd.cloud.redpanda.com Dedicated: [cluster_id].fmc.prd.cloud.redpanda.com Distributed denial of service (DDoS) protection All Redpanda Cloud services publicly exposed in the control plane and data plane are protected against the most common layer 3 and 4 DDoS attacks by AWS Shield Standard, with no latency impact. VPC peering VPC peering against Redpanda Cloud networks allows users to connect to private clusters without traversing the public internet. You can establish VPC peering connections between two VPCs with non-overlapping network addresses. When creating a network intended for peering, ensure that the specified network address range does not overlap with the network address range of the destination VPC. Security best practice: When using VPC peering, always reject all network traffic initiated from a Redpanda Cloud network and only accept traffic from trusted connectors. AWS PrivateLink AWS PrivateLink lets you connect to cluster services using unidirectional TCP connections that client applications can only initiate. These applications can run from multiple customer-managed VPCs, even if their CIDR ranges overlap with the Redpanda cluster VPC. AWS PrivateLink is configured against the Redpanda cluster’s network load balancer. All client connections to cluster services pass through this load balancer. You configure PrivateLink with the Redpanda Cloud API or UI, and it is protected by an allowlist of principal ARNs during creation. Only those principals can create VPC endpoint attachments to the PrivateLink service. Time synchronization Redpanda Cloud synchronizes time through the underlying Azure host, which uses internal Microsoft time servers that get their time from Microsoft-owned Stratum 1 devices with GPS antennas. Domain name system (DNS) Redpanda Cloud creates a new DNS zone for each cluster in the control plane and delegates its management exclusively to each cluster’s agent. In turn, the agent creates an Azure DNS zone and manages the DNS records for Redpanda services, as needed. All Azure API interactions with Azure DNS are done through a user-assigned managed identity, with constrained Azure RBAC permissions, following the principle of least privilege. The DNS zone in the data plane has the following naming convention: BYOC: [cluster_id].byoc.prd.cloud.redpanda.com Dedicated: [cluster_id].fmc.prd.cloud.redpanda.com Distributed denial of service (DDoS) protection All Redpanda Cloud services publicly exposed in the control plane are protected against the most common layer 3 and 4 DDoS attacks by AWS. Data plane services in Azure are not protected by default against common network-level DDoS attacks. Azure customers are fully responsible for enabling this protection, because it has an added cost. VNet peering VNet peering against Redpanda Cloud networks allows users to connect to private clusters without traversing the public internet. VNet peering in Azure is in limited availability. VNet peering connections can only be established between two or more VNets with non-overlapping network addresses. When creating a Redpanda Cloud network for peering, make sure the Redpanda network address range does not overlap with the network address range of the destination VNet. Security best practice: When using VNet peering, always reject all network traffic initiated from a Redpanda Cloud network and only accept traffic from trusted connectors. Unlike AWS and GCP, Azure charges $0.01 per GB transferred over a VNet peering, in either direction. For high-throughput use cases, consider using BYOVPC clusters. With BYOVPC, client application workloads are deployed on the same VNet as the Redpanda brokers, avoiding additional data transfer costs. Azure Private Link Azure Private Link lets you connect to cluster services using an unidirectional TCP connection that can only be initiated by client applications. These applications can run from multiple customer-managed VNets, even if their CIDR ranges overlap with the Redpanda cluster VNet. Redpanda configures Private Link against the cluster’s Azure load balancer. All client connections to the Redpanda cluster services pass through this load balancer. You configure Private Link with the Redpanda Cloud API, and it is protected during creation by an allowlist of Azure subscription IDs. Only allowlisted subscriptions can create private endpoint attachments to the cluster’s Private Link service. Time synchronization Redpanda Cloud uses Google NTP Servers, a fleet of satellite-connected and atomic reference clocks. Domain name system (DNS) Redpanda Cloud creates a new DNS zone for each cluster in the control plane and delegates its management exclusively to each cluster’s data plane. In turn, the data plane creates a managed zone in Cloud DNS, managing DNS records for Redpanda services, as needed. All interactions with Cloud DNS are controlled by IAM policies targeted to the specific Cloud DNS resources managed by each data plane, following the principle of least privilege. Distributed denial of service (DDoS) protection All Redpanda Cloud services publicly exposed in the control plane and data plane are protected against the most common layer 3 and 4 DDoS attacks by Google Cloud Armor Standard, with no latency impact. VPC peering VPC peering against Redpanda Cloud networks allows users to connect to private clusters without traversing the public internet. You can establish VPC peering connections between two VPCs with non-overlapping network addresses. When creating a network intended for peering, ensure that the specified network address range does not overlap with the network address range of the destination VPC. Security best practice: When using VPC peering, always reject all network traffic initiated from a Redpanda Cloud network and only accept traffic from trusted connectors. GCP Private Service Connect GCP Private Service Connect lets you connect to cluster services using a unidirectional TCP connection that can only be initiated by client applications. These applications can run from multiple customer-managed VPCs, even if their CIDR ranges overlap with the Redpanda cluster VPC. Redpanda configures a Private Service Connect publisher or producer against the cluster’s network load balancer. All client connections to the Redpanda cluster services pass through this load balancer. You configure a Private Service Connect publisher with the Redpanda Cloud API. It is protected during creation by a consumer accept list of GCP networks or project IDs. Only those consumers can create consumer endpoints to the Redpanda cluster’s Private Service Connect published service. Suggested reading Redpanda Cloud overview BYOC architecture BYOC networking Dedicated networking Back to top × Simple online edits For simple changes, such as fixing a typo, you can edit the content directly on GitHub. Edit on GitHub Or, open an issue to let us know about something that you want us to change. Open an issue Contribution guide For extensive content updates, or if you prefer to work locally, read our contribution guide . Was this helpful? thumb_up thumb_down group Ask in the community mail Share your feedback group_add Make a contribution Networking Choose CIDR Ranges
